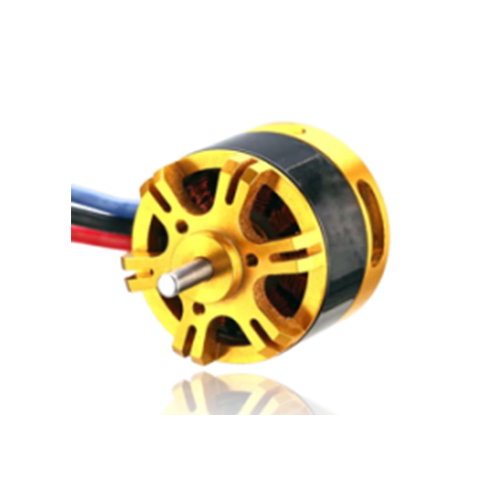

Brushless DC Motor Supplier
| MODEL | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|
| BE2208-7 | 2600 | 40A | 478 | 43.1 | 44 | 2~5S | 0.044 | 800 | Φ3.0 | Φ28×26 |
| BE2208-10 | 1800 | 30A | 389 | 26.1 | 44 | 2~5S | 0.085 | 816 | Φ3.0 | Φ28×26 |
| BE2208-13 | 1400 | 30A | 384 | 26 | 44 | 2~5S | 0.106 | 1060 | Φ3.0 | Φ28×26 |
| BE2208-17 | 1070 | 20A | 351 | 19 | 44 | 2~5S | 0.208 | 1025 | Φ3.0 | Φ28×26 |
| MODEL | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|
| BE2208-7 | 2600 | 40A | 478 | 43.1 | 44 | 2~5S | 0.044 | 800 | Φ3.0 | Φ28×26 |
| BE2208-10 | 1800 | 30A | 389 | 26.1 | 44 | 2~5S | 0.085 | 816 | Φ3.0 | Φ28×26 |
| BE2208-13 | 1400 | 30A | 384 | 26 | 44 | 2~5S | 0.106 | 1060 | Φ3.0 | Φ28×26 |
| BE2208-17 | 1070 | 20A | 351 | 19 | 44 | 2~5S | 0.208 | 1025 | Φ3.0 | Φ28×26 |
