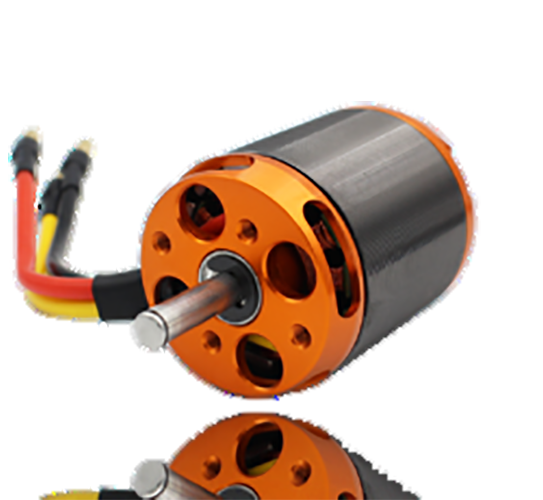

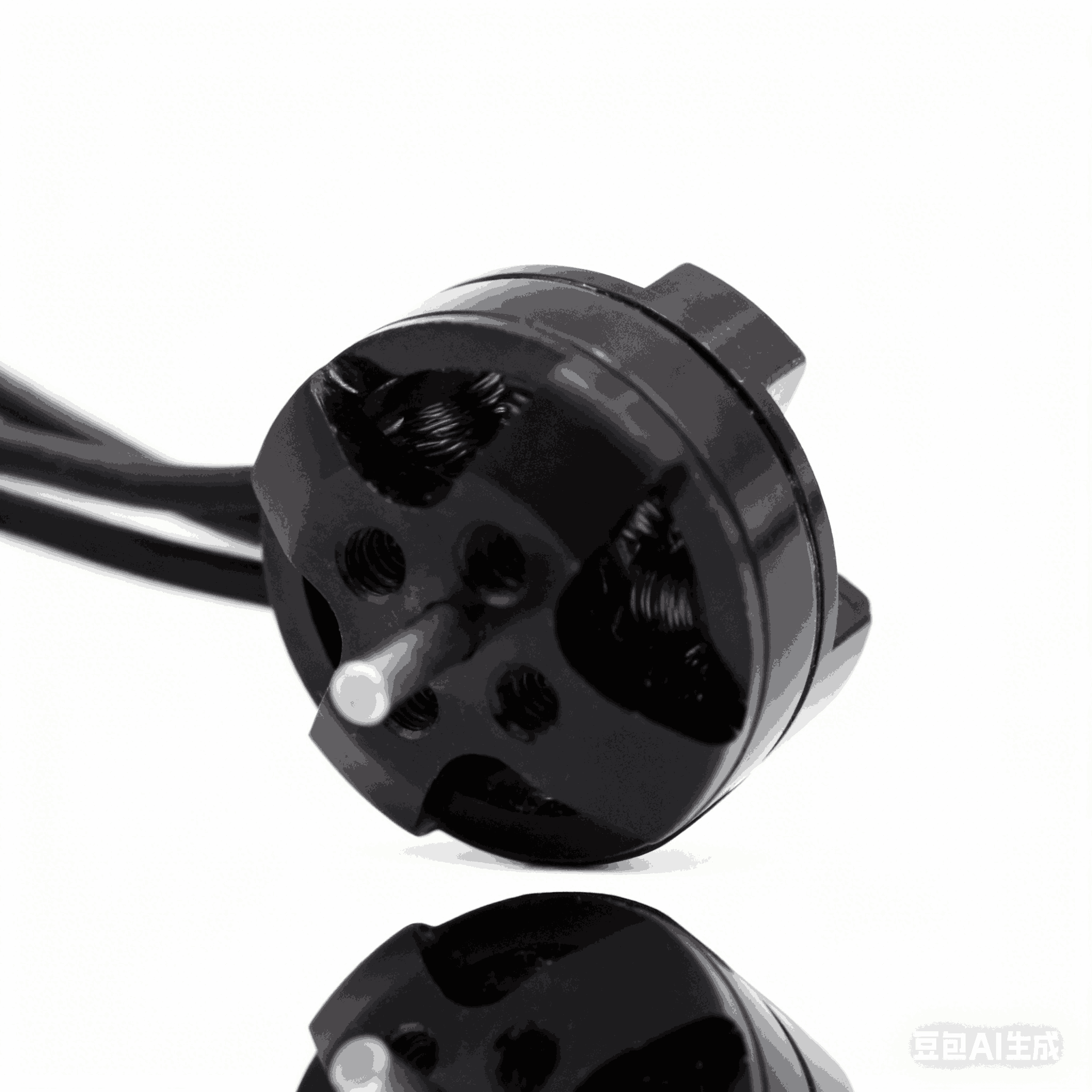

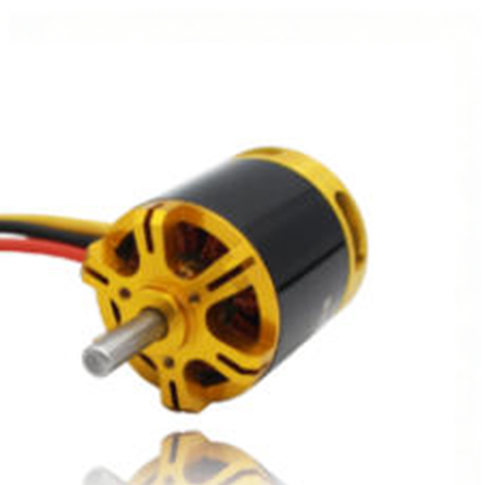

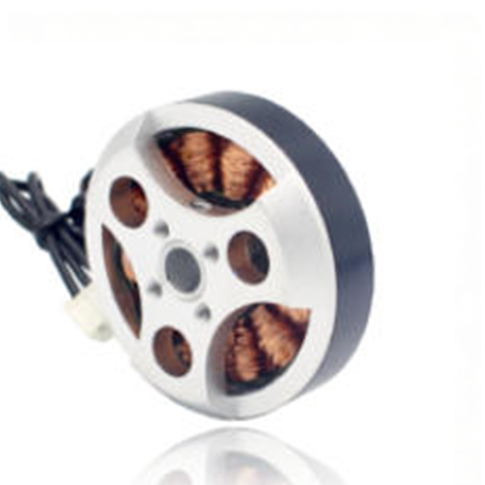

Brushless DC Motor
| MODEL | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|

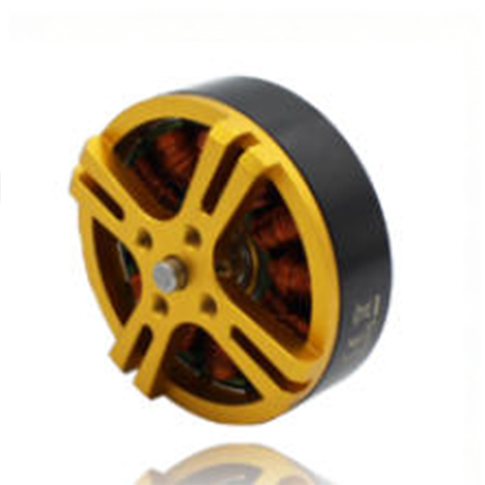

| BE5208-25 | 330 | 30A | 626 | 28.2 | 200 | 3~6S | 0.106 | 3300 | Φ5.0 | Φ63x30 |
A Brushless DC Motor (BLDC) is a high-efficiency, low-maintenance motor that operates without brushes or commutators. Composed of a motor body and a driver, it offers smoother operation, longer lifespan, and improved torque compared to brushed motors. Known for their quiet performance and energy efficiency, brushless motors are ideal for applications in robotics, automotive systems, HVAC, and industrial machinery.
Higher Efficiency
Brushless motors operate more efficiently than conventional brushed motors, converting more electrical energy into mechanical energy, which results in lower energy consumption and reduced operational costs.
Longer Lifespan
Without brushes that wear out over time, brushless motors have fewer moving parts, leading to less maintenance and a significantly longer lifespan.
Quieter Operation
Brushless motors generate less noise during operation due to the absence of brushes creating friction, making them ideal for applications that require quiet environments.
Better Performance
They provide smoother operation and better torque at low speeds, enhancing overall performance in various applications, from appliances to industrial machinery.
Ruige makes controlling shafts effortless, unlocking limitless application possibilities.
Focusing on carbon steel shaft gaskets, Ruige makes shaft control a breeze, helping customers expand into more innovative application areas.
| MODEL | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE5208-25 | 330 | 30A | 626 | 28.2 | 200 | 3~6S | 0.106 | 3300 | Φ5.0 | Φ63x30 |
| MODEL | RPM/KV | Voltage | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Motor Size (mm) | RI(Ω) | ShaftΦ |
|---|---|---|---|---|---|---|---|---|
| BE4250 | 600KV | 12V | 20.8W | 2.52A | 214g | Φ50x42.2 | 0.024 | Φ17 |
| MODEL | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE4215-21 | 650 | 40A | 865 | 39 | 83 | 3~6S | 0.110 | 2290 | Φ4.0 | Φ42x15 |
| MODEL | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE4108-8 | 720 | 30A | 666 | 30 | 113 | 3~6S | 0.055 | 2200 | Φ4.0 | Φ46x25 |
| BE4108-10 | 580 | 40A | 821 | 37 | 113 | 3~6S | 0.098 | 2000 | Φ4.0 | Φ46x25 |
| BE4108-12 | 480 | 30A | 599 | 27 | 113 | 3~6S | 0.125 | 2450 | Φ4.0 | Φ46x25 |
| BE4108-15 | 380 | 20A | 381 | 17.2 | 113 | 3~6S | 0.193 | 2080 | Φ4.0 | Φ46x25 |
| Model | RPM/KV | Voltage | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Motor Size(mm) | RI(Ω) | ShaftΦ |
|---|---|---|---|---|---|---|---|---|
| BE4010 | 348KV | 12V | 5.48W | 0.45A | 155g | Φ47.2×29.5 | 0.26 | Φ3.0 |
| Model | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | 拉力 Pull(g) | ShaftΦ | Motor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE3608-15 | 460 | 30A | 450 | 20.3 | 83 | 3~6S | 0.128 | 2103 | Φ4.0 | Φ42×15 |
| BE3608-11 | 630 | 40A | 700 | 31.2 | 83 | 3~6S | 0.076 | 2369 | Φ4.0 | Φ42×15 |
| Model | RPM/KV | Voltage | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Motor Size(mm) | RI(Ω) | ShaftΦ |
|---|---|---|---|---|---|---|---|---|
| BE3506 | 79KV | 18V | 1.584W | 0.09A | 58g | Φ42×20.5 | 11.9 | Φ12 |
| Model | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE2826-4 | 1060 | 40A | 817 | 44.2 | 159 | 3~6S | 0.018 | 2120 | Φ5.0 | Φ35×48 |
| BE2826-4.5 | 940 | 40A | 543 | 24.5 | 159 | 3~6S | 0.021 | 1580 | Φ5.0 | Φ35×48 |
| BE2826-5.5 | 770 | 40A | 825 | 37.2 | 159 | 3~6S | 0.034 | 2820 | Φ5.0 | Φ35×48 |
| Model | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE2820-4 | 1340 | 40A | 740 | 40 | 131 | 3~6S | 0.015 | 1820 | Φ5.0 | Φ35×42 |
| BE2820-4.5 | 1200 | 40A | 575 | 31.1 | 131 | 3~6S | 0.018 | 1610 | Φ5.0 | Φ35×42 |
| BE2820-5.5 | 970 | 30A | 586 | 26.4 | 131 | 3~6S | 0.018 | 1630 | Φ5.0 | Φ35×42 |
| Model | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE2814-8.5 | 910 | 40A | 759 | 34.2 | 100 | 3~6S | 0.061 | 1990 | Φ5.0 | Φ35×36 |
| BE2814-8 | 980 | 40A | 797 | 35.9 | 100 | 3~6S | 0.038 | 1710 | Φ5.0 | Φ35×36 |
| BE2814-6 | 1280 | 40A | 596 | 38.5 | 100 | 3~6S | 0.022 | 1610 | Φ5.0 | Φ35×36 |
| BE2814-5 | 1400 | 40A | 633 | 42.8 | 100 | 3~6S | 0.015 | 1390 | Φ5.0 | Φ35×36 |
| Model | RPM/KV | ESC | MAX watt(W) | MAX CURRENT(A) | Weight(g) | Battery Lipo cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE2808-8 | 1760 | 40A | 535 | 36.2 | 75 | 3~6S | 0.033 | 1390 | Φ5.0 | Φ35×30 |
| BE2808-10 | 1400 | 40A | 529 | 34 | 75 | 3~6S | 0.045 | 1500 | Φ5.0 | Φ35×30 |
| BE2808-13 | 1080 | 40A | 523 | 23.6 | 75 | 3~6S | 0.081 | 1430 | Φ5.0 | Φ35×30 |
| Model | RPM/KV | ESC | MAX Watt(W) | MAX Current(A) | Weight(g) | Battery Lipo Cells | RI(Ω) | Pull(g) | ShaftΦ | Motor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BE2217-9 | 930 | 20A | 234 | 21.1 | 80 | 3~4S | 0.131 | 1040 | Φ4.0 | Φ28×36 |
| BE2217-10 | 800 | 20A | 178 | 16.1 | 80 | 3~4S | 0.131 | 1200 | Φ4.0 | Φ28×36 |
Our products are perfect for home care, beauty salons, and medical use, promoting skin health and wellness
We specialize in nano non-invasive technology, offering cutting-edge R&D for personal care, beauty, and health products.
Our solutions cover home care, beauty salons, hair growth, and medical fields, providing diverse skin introduction technologies.
From R&D to production and testing, our in-house facilities ensure strict quality control and efficient manufacturing processes.
We prioritize customer satisfaction with innovative products and dedicated service, ensuring a superior user experience.
We offer OEM/ODM services, providing personalized product customization based on customer needs. We continuously collaborate with clients to innovate and upgrade products.
We adhere to strict quality standards, ensuring that every step of the process, from material procurement to production and testing, meets high-quality requirements. We provide reliable products and comprehensive after-sales service.
With our strong R&D team and in-house manufacturing capabilities, we offer full technical support and professional services to ensure proper usage and effectiveness, enhancing customer satisfaction.
We can adjust production schedules to quickly respond to customer needs, ensuring timely delivery and meeting both large-scale production and urgent orders.
They provide smoother operation, better torque at low speeds, and more precise control, making them suitable for robotics, automotive systems, HVAC, and industrial machinery.
Yes, the absence of brushes eliminates friction-based noise, making brushless motors ideal for applications requiring low-noise performance.
Without brushes that wear down, brushless motors have fewer moving parts, require less maintenance, and provide a significantly longer lifespan than conventional motors.
Brushless motors convert more electrical energy into mechanical energy, reducing energy consumption and operational costs while delivering high-performance output.
A Brushless Motor (BLDC) is an efficient, low-maintenance motor without brushes or commutators, offering smoother operation, longer lifespan, and improved torque compared to traditional brushed motors.
